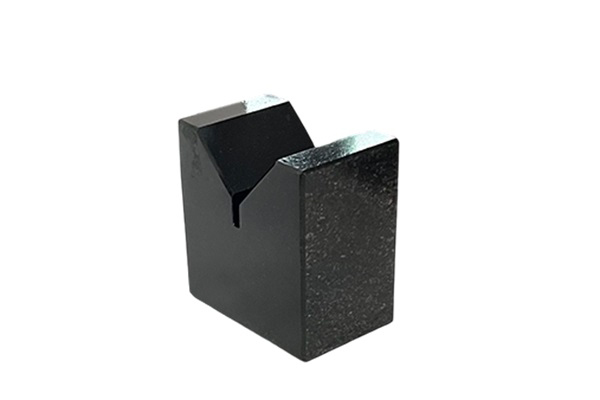

Granite V-Block

Granite V-Block

The Apex of Stability in Precision Fixturing

Engineered for applications where absolute dimensional integrity is non-negotiable,the Granite V-Block is a master-grade workholding and reference fixture.It provides an inert,unchanging foundation for the most critical measurement,inspection,and assembly tasks,eliminating the variables introduced by less stable materials.

Unmatched Performance Attributes

Intrinsic Thermal Stability:Granite’s negligible thermal expansion ensures geometric consistency and measurement repeatability across environmental temperature changes,a critical factor in high-accuracy environments.

Superior Vibration Damping:The natural density and composition of granite absorb and dissipate ambient and operational vibrations,creating a uniquely stable platform for sensitive setups.

Permanent Geometric Integrity:Exceptionally hard and wear-resistant,the lapped surfaces maintain their precision flatness,angular accuracy,and finish indefinitely,representing a lasting capital asset.

Inherently Neutral:Non-magnetic,non-conductive,and corrosion-proof,it is ideal for calibrating ferrous parts,working with electronics,and use in clean or corrosive environments without risk of interference or degradation.

Precision Manufacturing&Design

Master-Grade Lapping:Critical functional surfaces—the V-groove,base,and sides—are precision-lapped to achieve optical-level flatness,perfect perpendicularity,and an exact included angle.

Monolithic Construction:Fabricated from a single,stress-relieved block of select granite,ensuring ultimate rigidity and the complete absence of internal movement or deformation.

Ergonomic&Safe:Designed with handling considerations for safe and easy use,often featuring recessed grips,while maintaining the integrity of all reference planes.
