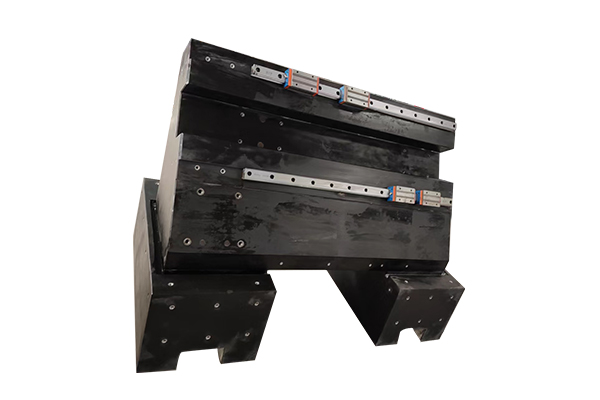

Granite Assembly

Granite Assembly

The Architectural Core of Ultimate Precision Systems

A Granite Assembly is a master-engineered structural system where granite serves as the unified,load-bearing chassis for integrating precision components.It transcends being a mere collection of parts to become a singular,stable entity engineered for micron-level coherence across its entire volume.

Core Design Principle:The Monolithic Advantage

The assembly is architected to behave as a single,rigid body.By constructing the critical frame from granite,engineers eliminate the primary sources of systemic error found in multi-material constructions:differential thermal expansion,interface creep,and resonant vibration between dissimilar parts.

Key Assembly Typologies

1.The Metrology Frame Assembly

Structure:A single,sculpted granite structure forming the base,vertical column,and horizontal bridge of a coordinate measuring machine(CMM)or optical comparator.

Value:Creates a fixed,invariant measuring volume.The relationship between the probe,the part,and the machine's axes is locked into a permanent geometric truth.

2.The Precision Stage Assembly

Structure:A granite base with integrated,co-planar granite guide rails and a granite moving carriage(often for X-Y motion).

Value:Provides sub-micron positioning repeatability.The moving element slides on a reference surface made of the same stable material,eliminating"stick-slip"and thermal drift between moving and stationary elements.

3.The Foundational Work Cell

Structure:A large,monolithic granite block machined to function as a multi-purpose station—incorporating a super-flat work surface,integrated mounting features(T-slots,threaded inserts),and calibrated reference edges.

Value:Serves as the absolute datum for an entire production or inspection process,ensuring all work performed on it shares a common,perfect reference plane.
