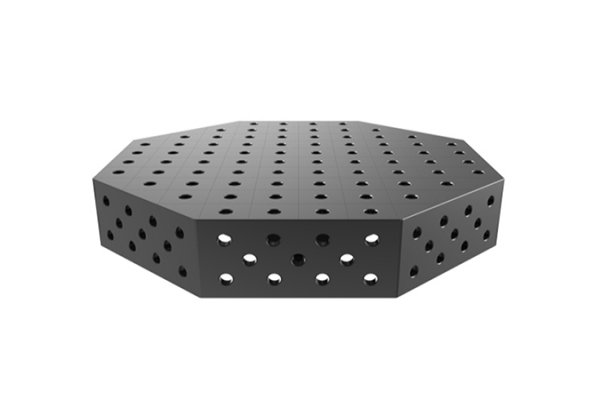

Octagonal welding table

360°of Fixturing Freedom for Complex Assembly

Introducing the revolutionary Octagonal Welding Table–the world's first truly omnidirectional fixturing platform that redefines flexibility in welding and fabrication.With eight precision working faces,this innovative design eliminates downtime for table rotation and provides unprecedented access to complex assemblies.

Revolutionary Design Concept

Eight-Sided Precision Engineering

Unlike conventional rectangular tables,our octagonal geometry provides:

8 precision-ground working surfaces in a single,rigid structure

Simultaneous multi-face fixturing without repositioning

Natural work zones for team collaboration or multi-stage processes

Optimized space utilization in circular work cells

Core System Features

1.Omnidirectional Grid System

Consistent 100mm grid pattern across all 8 faces

Dual-function precision holes on every surface

Through-hole design for clamping continuity between faces

Standardized interface across entire system

2.Structural Integrity

Single-cast octagonal core(GGG-60 ductile iron)

Internal radial reinforcement for maximum stiffness

Central mounting column with integrated leveling system

Thermal symmetry for stability during welding

3.Intelligent Access&Ergonomics

Height:Optimized 850mm working height

Rotation:Optional powered indexing with 0.01°accuracy

Access:Natural walk-around configuration

Lighting:Integrated LED lighting on each face
