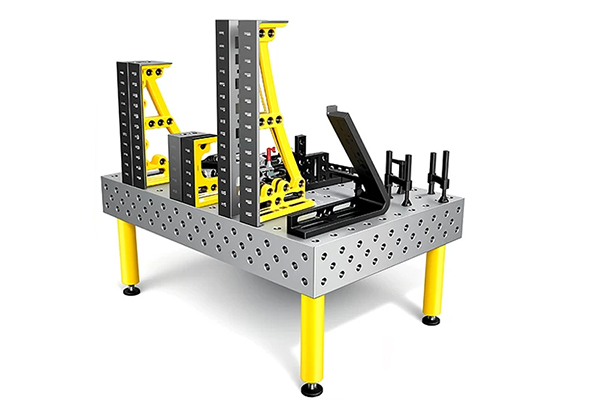

Modular Welding Fixture System

Modular Welding Fixture System

The Future of Flexible,Precision Workholding for Modern Fabrication

System Philosophy:Build Your Fixture,Don't Machine It

A Modular Welding Fixture System is a comprehensive kit of standardized,interchangeable components that allows you to construct custom welding fixtures on-demand.Instead of designing and machining expensive single-purpose jigs,you assemble precise,reusable fixtures from a library of modular parts.This transforms fixture creation from a days-long machining job into a minutes-long assembly task.

Core System Architecture:The Building Blocks of Precision

1.Foundation Components

Base Plates&Grid Tables:The starting canvas.Plates with precision-machined hole grids(16mm,28mm,or¾"on 100mm/4"centers)made from stress-relieved cast iron or steel.

Sub-Plates&Angle Plates:Create elevated or angled work surfaces.Hardened and ground to maintain squareness.

T-Slot Extrusion Frames:Aluminum or steel profiles for building 3D fixture frames and space-saving vertical setups.

2.Structural&Support Elements

Box Beams&Struts:Create rigid frameworks of any size.Feature mounting holes on all sides.

Adjustable Support Columns:Threaded posts with fine-adjustment nuts to establish precise Z-height datums.

Cubic Blocks&Multi-Angle Brackets:Pre-machined blocks with tapped holes on multiple faces for building complex 3D structures.

3.Locating&Positioning Elements

Locating Pins&Bushings:Hardened diamond pins,round pins,and custom profile pins for repeatable part positioning.

Rest Buttons&Support Pins:Carbide-tipped or steel buttons to create a stable,consistent datum plane.

Edge Clamps&Locators:Spring-loaded or fixed stops to quickly position parts against a known edge.

4.Clamping&Hold-Down Elements

Compact Multi-Axis Clamps:Exert clamping force in X,Y,and Z from a single mounting point.

Swing Clamps&Toggle Clamps:For rapid manual operation and clear tool access.

Push-Pull Clamps&Straps:For applying force across wider areas or on thin materials.

Magnetic Clamps:For quick initial positioning of ferrous materials.

5.Specialized Welding Modules

Pipe&Tube V-Blocks:Adjustable centers and angles for welding tube intersections.

Weld Backing Kits:Copper or ceramic bars that clamp behind joints for root pass quality.

Distortion Control Clamps:Actively counter thermal distortion during welding sequences.
