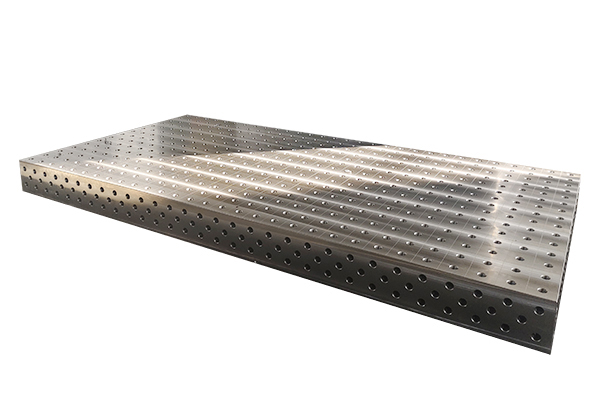

Large welding table

Large Welding Table System

Industrial-Scale Precision for Heavy Fabrication

The Foundation for Large-Scale Manufacturing Excellence

Our Large Welding Table System is engineered for industrial-scale fabrication,providing an expansive,ultra-stable foundation for assembling and welding large components with unparalleled precision.Designed for heavy-duty applications while maintaining the flexibility and accuracy of modular fixturing,it transforms large-scale welding from a challenging craft into a repeatable manufacturing process.

Engineered for Scale&Stability

Monolithic Precision Platform

Massive Single-Piece Construction

Size Range:3×4 meters to 6×12 meters(standard),custom sizes available

Single-Cast Design:Eliminates seams and alignment issues of joined tables

Ultra-Rigid Structure:Multi-directional ribbing with 400mm depth reinforcement

Load Capacity:10,000-30,000 kg capacity,depending on size and configuration

Extreme Precision at Scale

Flatness:±0.1mm/m across entire surface(special calibration available to±0.05mm/m)

Surface Treatment:Triple-hardened–stress relieving,nitriding,and final grinding

Thermal Stability:Low-expansion alloy maintains accuracy despite welding heat

Vibration Damping:Cast iron construction absorbs 90%more vibration than steel

Grid System Designed for Large Components

Enhanced Hole Pattern System

Dual Grid Options:100×100mm standard or 200×200mm for oversized tooling

Through-Holes:Ø28mm clearance holes with M24 threaded inserts

Edge Reinforcement:Additional rows at perimeter for heavy edge loading

Laser-Verified Alignment:Each hole positioned within±0.03mm tolerance

Heavy-Duty Features

Crane Access Points:Integrated lifting lugs at strategic locations

T-Slot Integration:Combined hole/T-slot pattern for massive clamping

Sub-Surface Channels:For utilities,air lines,and vacuum clamping

Access Ports:Removable sections for through-component fixturing
