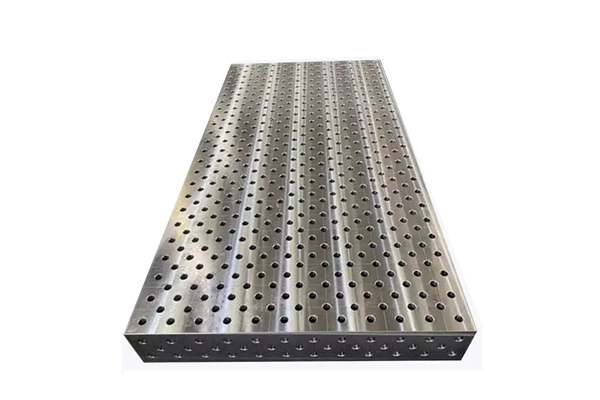

3D Flexible Welding Table System

The Ultimate Modular Fixturing Solution for Modern Fabrication

Transform your welding workflow with our next-generation 3D Flexible Welding Table System–the intelligent foundation for precision manufacturing,rapid prototyping,and batch production.

Core Innovation:The Freedom to Fixture in All Dimensions

Unlike conventional worktables,our system provides a complete three-dimensional modular fixturing environment where every face of the workpiece can be accessed,supported,and clamped with millimetric precision.

System Components

1.Precision Table Platform

Material:High-grade,thermally stabilized cast iron or steel

Surface Treatment:Nitrided for extreme hardness(1000+HV)and wear resistance

Accuracy:Ground to±0.05mm/m(Grade 00 standard,Grade 000 available)

Grid Pattern:Laser-verified 100×100mm or 50×50mm hole matrix

Hole Design:Dual-function holes with precision locating diameter+threaded mounting

Load Capacity:Reinforced rib structure supports 5-10 tons(size dependent)

2.Universal 3D Mounting System

Five-Side Utility:Fully machined top and four vertical faces with identical grid patterns

True 3D Fixturing:Secure workpieces from top,sides,ends,or any combination

Zero-Point Clamping:Quick-change fixtures with repeatability<0.01mm

Modular Expandability:Multiple tables can be joined to create unlimited work areas

3.Smart Modular Tooling System

Rapid Clamping Kits:Quick-action clamps,toggle clamps,hydraulic/pneumatic options

Adjustable Elements:Angle brackets,V-blocks,stop pins,spacer sets

Specialized Tools:Magnetic bases,rotating fixtures,tilt mechanisms

Digital Accessories:Laser projection systems,measuring arm interfaces
